Waste Solution Collection Device

Waste Solution Collection Device

This device automatically collects waste solution generated when washing the paint machine during color changeover.
It can also be used to save space and replace existing equipment.
* Patent pending

Solve these issues
・Improvement of productivity
・Improvement of coating quality
・Reduction of cleaning costs
・Improvement of environment

Features

Waste solution collection rate 100%

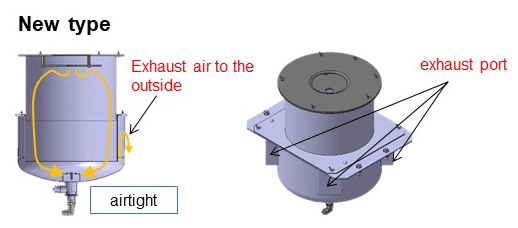

In the conventional structure, there are openings that allow the airflow generated when the air motor rotates and the cleaning air discharged from the paint equipment to escape. The waste solution sometimes leaks out through these openings. The new model employs a tank structure that creates a seal and prevents waste solution leakage, achieving a 100% waste solution recovery rate.
* Compatible with both water-based and solvent-based paints

Applications・Installation record

Applications
・Automobile painting
・General painting (resin parts painting, etc.)
Installation record
・Toyota Motor Corporation
・Daihatsu Motor Co., Ltd.
・Toyota Motor East Japan, Inc.
・Toyota Motor Kyushu, Inc.
