SA Diffuser

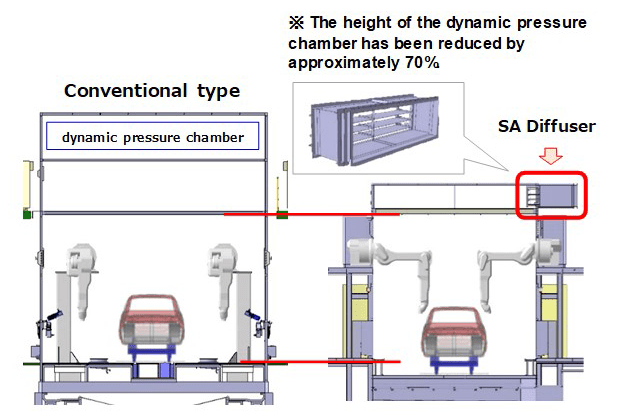

In a conventional painting booth, a dynamic pressure chamber is required at the upper front of the filter room to even out the wind velocity in the booth. By installing the SA diffuser, the dynamic pressure chamber can be eliminated.
- Solve these issues
- ・Saving of space
・Reduction of running costs
Features
Uniform wind velocity
By installing the “SA Diffuser” at the blow-off port of the intake duct connected to the filter room, the velocity of the wind fed into the painting booth can be controlled uniformly, even without the dynamic pressure chamber.
Save space in the painting booth
Downsizing the equipment installation space significantly reduces construction and maintenance costs.
Applications・Installation record
- Applications
- ・Automobile painting
・General painting
- Installation record
- ・Toyota Motor Corporation
・Toyota Auto Body Co., Ltd.
・Toyota Motor East Japan, Inc.
・Daihatsu Motor Co., Ltd.
・FAW Toyota Motor Co., Ltd.
・GAC Toyota Motor Co., Ltd.
Specification
Booth width: 4,000 mm to 7,500 mm
